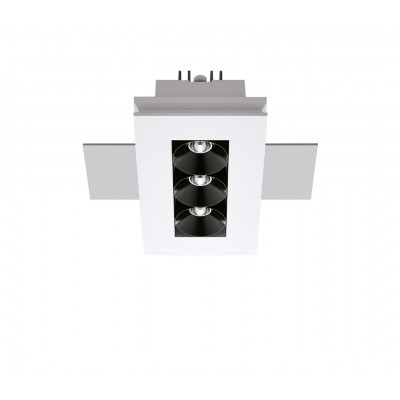

i-LèD Maestro - Cell - Gypsum Cell-3 powerLEDs 6 W 630 mA - Downlight with three spotlights with plaster frame
The box shows the actual finish
HCDL
We do not have the image of the article in this finish. The image refers to the same article in another finish.
Show also items sold only with a quote Hide items that can only be sold with a quote
FINISHING - White RAL 9003 / Embossed black RAL 9005
COLOURS - Natural white - 4000 K
Natural white - 4000 K
Warm white - 3000 K
Super warm - 2700 K
OPTICS - 15°
15°
15°
30°
30°
45°
45°
Finishing
White RAL 9003 / Embossed black RAL 9005
Colours
Natural white - 4000 K
Natural white - 4000 K
Optics
15°
15°
On order
Produced in about 5/6 weeks from the order
change
Gypsum Cell-3 powerLEDs 6 W 630 mA - Downlight with three spotlights with plaster frame
Brand
I-LèD Maestro
I-LèD Maestro
Gypsum Cell-3 powerLEDs 6 W 630 mA - Downlight with three spotlights with plaster frame
Finishing
White RAL 9003 / Embossed black RAL 9005
Code
LS-LL-64546N15
Ean
8056534950504
Collection
Cell
On order
Produced in about 5/6 weeks from the order
Free shipping
Description

Ceiling lamp with LED technology, with IP degree protection 20, type of energy class A++, available also in white ral 9003 / embossed black ral 9005 or white ral 9003 finishing, available with 15°, 30° and 45° optics, available up to 747 lumen, CRI 80-90%, dimensions: width 80 mm, height 150 mm, depth 71 mm. Made in Italy.

Technical specifications
Lamp type
powerLED
Power
6 W
Current
630 mA
Colours
Natural white - 4000 K
Natural white - 4000 K
Optics
15°
15°
Input
V
Power supply
Frequency
Hz
Light flux
747 Lumen
Ingress Protection Code
IP 20
Energy class
A++
...
A
See label
CRI
80 %
Switch
No
Smart
Efficiency
77 lm/W
IK
00
Bluetooth
No
Adjustable
No
Presence detector
No
Emergency
No
Made in Italy
Yes
REQUEST TECHNICAL INFORMATION
Further information
FINISHINGS
Radiator
Colours
Aluminium
Material
Die-cast Aluminium
APPLICATIONS
Placement
Indoor
Application
Ceiling
Typology
Spotlights
STYLES
Dimensions

Width: 80 mm

Height: 150 mm

Depth: 71 mm

Variants list
showhide variants
LS-LL-64546N15
White RAL 9003 / Embossed black RAL 9005
8056534950504
powerLED 6 W  630 mA 747 Lm - Natural white 4000 K - 15°

purchasable only with a quote
LS-LL-64546N30
White RAL 9003 / Embossed black RAL 9005
8056534950511
powerLED 6 W  630 mA 747 Lm - Natural white 4000 K - 30°

purchasable only with a quote
LS-LL-64546W15
White RAL 9003 / Embossed black RAL 9005
8056534950528
powerLED 6 W  630 mA 537 Lm - Warm white 3000 K - 15°

purchasable only with a quote
LS-LL-64546W30
White RAL 9003 / Embossed black RAL 9005
8056534947757
powerLED 6 W  630 mA 537 Lm - Warm white 3000 K - 30°

LS-LL-64547N15
White RAL 9003
8056534950535
powerLED 6 W  630 mA 747 Lm - Natural white 4000 K - 15°

purchasable only with a quote
LS-LL-64547W15
White RAL 9003
8056534950559
powerLED 6 W  630 mA 537 Lm - Warm white 3000 K - 15°

purchasable only with a quote
LS-LL-64547N30
White RAL 9003
8056534950542
powerLED 6 W  630 mA 747 Lm - Natural white 4000 K - 30°

purchasable only with a quote
LS-LL-64547W30
White RAL 9003
8056534946460
powerLED 6 W  630 mA 537 Lm - Warm white 3000 K - 30°

LS-LL-64546M15
White RAL 9003 / Embossed black RAL 9005
8033913263677
powerLED 6 W  630 mA 471 Lm - Super warm 2700 K - 15°

purchasable only with a quote
LS-LL-64546M30
White RAL 9003 / Embossed black RAL 9005
8033913263684
powerLED 6 W  630 mA 471 Lm - Super warm 2700 K - 30°

purchasable only with a quote
LS-LL-64546M45
White RAL 9003 / Embossed black RAL 9005
8033913263707
powerLED 6 W  630 mA 471 Lm - Super warm 2700 K - 45°

purchasable only with a quote
LS-LL-64546N45
White RAL 9003 / Embossed black RAL 9005
8033913036547
powerLED 6 W  630 mA 747 Lm - Natural white 4000 K - 45°

purchasable only with a quote
LS-LL-64546W45
White RAL 9003 / Embossed black RAL 9005
8033913036554
powerLED 6 W  630 mA 537 Lm - Warm white 3000 K - 45°

purchasable only with a quote
LS-LL-64547M15
White RAL 9003
8033913263714
powerLED 6 W  630 mA 471 Lm - Super warm 2700 K - 15°

purchasable only with a quote
LS-LL-64547M30
White RAL 9003
8033913263738
powerLED 6 W  630 mA 471 Lm - Super warm 2700 K - 30°

purchasable only with a quote
LS-LL-64547M45
White RAL 9003
8033913263745
powerLED 6 W  630 mA 471 Lm - Super warm 2700 K - 45°

purchasable only with a quote
LS-LL-64547N45
White RAL 9003
8033913036561
powerLED 6 W  630 mA 747 Lm - Natural white 4000 K - 45°

purchasable only with a quote
LS-LL-64547W45
White RAL 9003
8033913036578
powerLED 6 W  630 mA 537 Lm - Warm white 3000 K - 45°

purchasable only with a quote
Driver
i-LèD Maestro - ON/OFF driver C.C. - Slim On/Off Driver
From 6 W to 12 W - 630 mA
Supported lamps: 1 / 2
51.24 €
43.55 €
Shipped within 24 hours
i-LèD Maestro - ON/OFF driver C.C. - Simon On/Off Driver
From 6 W to 12 W - 630 mA
Supported lamps: 1 / 2
56.12 €
33.67 €
Shipped within 24 hours
i-LèD Maestro - ON/OFF driver C.C. - Penny On/Off Driver
From 6 W to 12 W - 630 mA
Supported lamps: 1 / 2
57.34 €
48.74 €
i-LèD Maestro - ON/OFF driver C.C. - Leon On/Off Driver
From 12 W to 24 W - 630 mA
Supported lamps: 2 / 4
64.66 €
54.96 €
i-LèD Maestro - ON/OFF driver C.C. - Maxi_Aqualed On/Off Driver
From 12 W to 24 W - 630 mA
Supported lamps: 2 / 4
108.58 €
92.29 €
i-LèD Maestro - Control System C.C. - Boson 0/1-10 N/O button Multi Power
From 2 W to 20 W - 630 mA
Supported lamps: 1 / 3
96.38 €
81.92 €
In stock
i-LèD Maestro - Control System C.C. - Argo Push and Simply Dim DALI Multipower
From 2 W to 24 W - 630 mA
Supported lamps: 1 / 4
95.16 €
80.89 €
In stock
i-LèD Maestro - Control System C.C. - Argo Push and Simply Dim DALI Multipower
From 2 W to 24 W - 630 mA
Supported lamps: 1 / 4
101.26 €
86.07 €
In stock
i-LèD Maestro - Converter - Round On/Off Converter
From 2 W to 12 W - 630 mA
Supported lamps: 1 / 2
48.80 €
41.48 €
In stock
