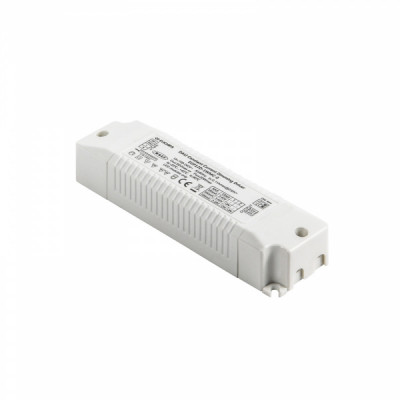

i-LèD Maestro - Control System C.C. - WT Triac Multi Power
C.C. / C.V.
Direct current
Input AC
100-240 V / 50-60 Hz
Inrush current
10 A
Max. case temperature
90 °C
Planck DALI Multi Power - Driver
Brand
I-LèD Maestro
I-LèD Maestro
Planck DALI Multi Power - Driver
Code
LS-LL-99373
Ean
8056534973640
Collection
Control System C.C.
On order
Produced in about 5/6 weeks from the order
Free shipping
Technical data
LedPowerCurrentVoltageToleranceEfficiencyPower factor
arrayLED1-12 W350 mA34 V5%84%0.9
powerLED1.5-12 W500 mA24 V5%84%0.9
powerLED1.5-12 W600 mA20 V5%84%0.9
Description
Planck DALI Multi Power is an electronic device for controlling LED light sources recommended for 6W, 8W or two 6W series items. It allows settings through DALI interface and selection of the output current intensity via a dip-switch. It is an electronic component capable of withstanding high temperatures, overloading, open circuits and short circuits in the output wiring.
Technical specifications
Ingress Protection Code
IP 40
Protection class
II
Control interface
Dali
Features
Mounted on furniture, Mounting on flammable surfaces
Protections
Open circuit, Short-circuit, Overload, Overvoltage, Thermal, Self-resetting overtemperature
Working temperature
From -20° to 40°
Installation hole
Circular
Hole dimension
51 mm
Fixing holes distance
0.0 mm
REQUEST TECHNICAL INFORMATION
Dimensions

Width: 43 mm

Height: 150 mm

Depth: 29 mm

Hole dimension: 51 mm
