i-LèD Maestro - Control System C.V. - Reason_150 0/1-10v Driver - None - LS-LL-99332
C.C. / C.V.
Direct current voltage
Input AC
190-250 V / 50-60 Hz
Inrush current
40 A
Max. case temperature
70 °C
Overloading
100 °C
THD
7%
Reason_150 0/1-10v Driver - Driver
Brand
I-LèD Maestro
I-LèD Maestro
Reason_150 0/1-10v Driver - Driver
Code
LS-LL-99332
Ean
8056534895867
Collection
Control System C.V.
Available
Shipped in 7/8 days
191.54 €
162.81 €
Price VAT included (22%)
Free shipping
Quantity
-
+
Technical data
LedPowerCurrentVoltageToleranceEfficiencyPower factorRipple
1-150 W6,250 mA24 V10%95%0.985 %
topLED1-150 W6,250 mA24 V10%95%0.985 %
Description

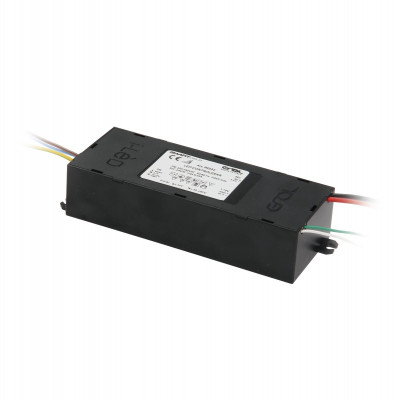

Reason_150 0/1-10v Driver is ideal for LED strips, 5 mm LEDs and topLED with constant voltage. Adjustment via interface or 0/1-10V potentiometer. Auto-reset protection against open and short circuits.

Technical specifications
Ingress Protection Code
IP 65
Protection class
II
Control interface
1-10V, Dimming with integrated potentiometer
Features
Cable included, Mounted on furniture, Mounting on flammable surfaces
Protections
Open circuit, Short-circuit, Overload, Overvoltage, Thermal, Self-resetting overtemperature
Working temperature
From -40° to 50°
Installation hole
Circular
Hole dimension
70 mm
Fixing holes distance
158.0 mm
Made in italy
Yes
REQUEST TECHNICAL INFORMATION
Dimensions

Width: 60 mm

Height: 150 mm

Depth: 35 mm

Hole dimension: 70 mm
